PythonOCC基础使用：建模——三维特征运算（拉伸/放样/管道/沿路径放样

实现的国产云端CAD www.yuntucad.com

1. 拉伸

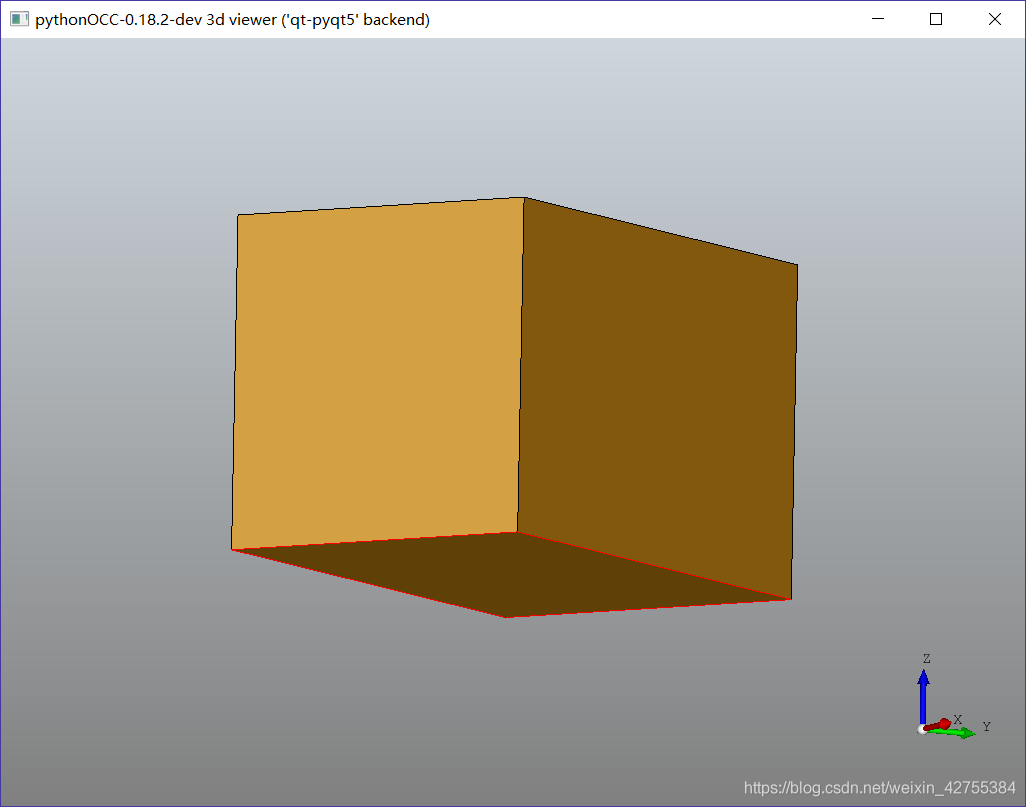

• 第一种情况：封闭曲线拉伸


from OCC.Core.BRepBuilderAPI import BRepBuilderAPI_MakeEdge, BRepBuilderAPI_MakeWire, BRepBuilderAPI_MakeFace
from OCC.Core.BRepPrimAPI import BRepPrimAPI_MakePrism, BRepPrimAPI_MakeRevol
from OCC.Core.gp import gp_Pnt, gp_Vec, gp_Ax1, gp_Dir

E11 = BRepBuilderAPI_MakeEdge(gp_Pnt(40.,0.,0.), gp_Pnt(82.5,25.,0.)).Edge()
E12 = BRepBuilderAPI_MakeEdge(gp_Pnt(82.5,25.,0.), gp_Pnt(42.5,93.,0.)).Edge()
E13 = BRepBuilderAPI_MakeEdge(gp_Pnt(42.5,93.,0.), gp_Pnt(0.,68.,0.)).Edge()
E14 = BRepBuilderAPI_MakeEdge(gp_Pnt(0.,68.,0.), gp_Pnt(40.,0.,0.)).Edge()
W1 = BRepBuilderAPI_MakeWire(E11,E12,E13,E14)

S =BRepPrimAPI_MakePrism(BRepBuilderAPI_MakeFace(W1.Wire()).Face(),gp_Vec(0.,0,50))

if __name__ == "__main__":
    from OCC.Display.SimpleGui import init_display
    display, start_display, add_menu, add_function_to_menu = init_display()
    display.DisplayShape(W1.Shape(),update=True)
    display.DisplayShape(S.Shape(), update=True)



    start_display()

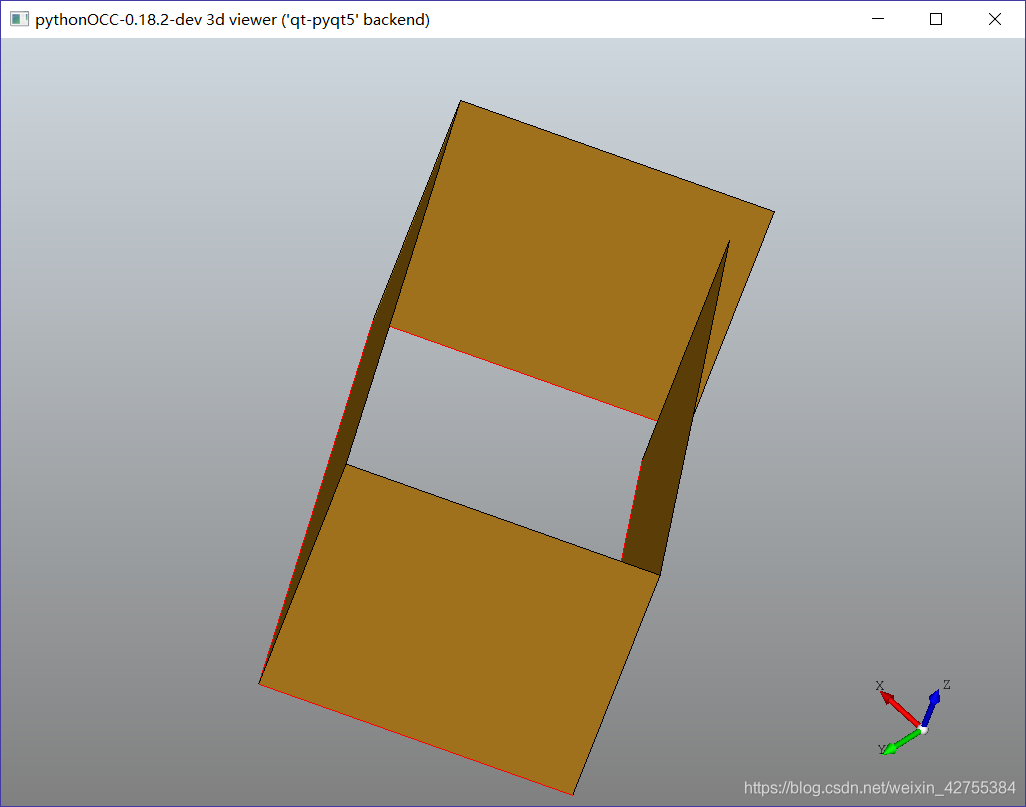

• 第二种情况：非封闭曲线拉伸
  –

from OCC.Core.BRepBuilderAPI import BRepBuilderAPI_MakeEdge, BRepBuilderAPI_MakeWire, BRepBuilderAPI_MakeFace
from OCC.Core.BRepPrimAPI import BRepPrimAPI_MakePrism, BRepPrimAPI_MakeRevol
from OCC.Core.gp import gp_Pnt, gp_Vec, gp_Ax1, gp_Dir

E11 = BRepBuilderAPI_MakeEdge(gp_Pnt(40.,0.,0.), gp_Pnt(82.5,25.,0.)).Edge()
E12 = BRepBuilderAPI_MakeEdge(gp_Pnt(82.5,25.,0.), gp_Pnt(42.5,93.,0.)).Edge()
E13 = BRepBuilderAPI_MakeEdge(gp_Pnt(42.5,93.,0.), gp_Pnt(0.,68.,0.)).Edge()
E14 = BRepBuilderAPI_MakeEdge(gp_Pnt(0.,68.,0.), gp_Pnt(40.,10.,0.)).Edge()
W1 = BRepBuilderAPI_MakeWire(E11,E12,E13,E14)

S =BRepPrimAPI_MakePrism(BRepBuilderAPI_MakeFace(W1.Wire()).Face(),gp_Vec(0.,0,50))

if __name__ == "__main__":
    from OCC.Display.SimpleGui import init_display
    display, start_display, add_menu, add_function_to_menu = init_display()
    display.DisplayShape(W1.Shape(),update=True)
    display.DisplayShape(S.Shape(), update=True)



    start_display()

• 第三种情况：空心图形拉伸

占坑。

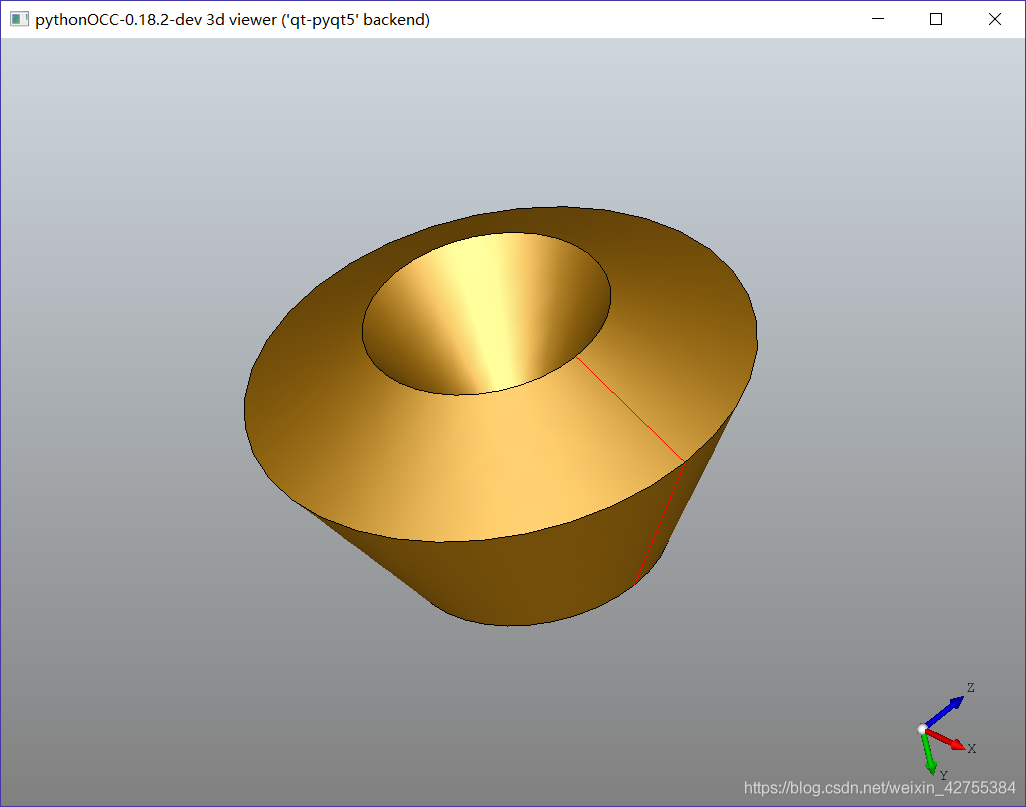

2. 旋转拉伸

from OCC.Core.BRepBuilderAPI import BRepBuilderAPI_MakeEdge, BRepBuilderAPI_MakeWire, BRepBuilderAPI_MakeFace
from OCC.Core.BRepPrimAPI import BRepPrimAPI_MakePrism, BRepPrimAPI_MakeRevol
from OCC.Core.gp import gp_Pnt, gp_Vec, gp_Ax1, gp_Dir

E11 = BRepBuilderAPI_MakeEdge(gp_Pnt(40.,0.,0.), gp_Pnt(82.5,25.,0.)).Edge()
E12 = BRepBuilderAPI_MakeEdge(gp_Pnt(82.5,25.,0.), gp_Pnt(42.5,93.,0.)).Edge()
E13 = BRepBuilderAPI_MakeEdge(gp_Pnt(42.5,93.,0.), gp_Pnt(0.,68.,0.)).Edge()
E14 = BRepBuilderAPI_MakeEdge(gp_Pnt(0.,68.,0.), gp_Pnt(40.,0.,0.)).Edge()
W1 = BRepBuilderAPI_MakeWire(E11,E12,E13,E14)

A=BRepPrimAPI_MakeRevol(BRepBuilderAPI_MakeFace(W1.Wire()).Face(),gp_Ax1(gp_Pnt(0,0,0),gp_Dir(0,1,0) ))
if __name__ == "__main__":
    from OCC.Display.SimpleGui import init_display
    display, start_display, add_menu, add_function_to_menu = init_display()
    display.DisplayShape(W1.Shape(), update=True)
    display.DisplayShape(A.Shape(), update=True)
    start_display()

3. 放样

from OCC.Core.AIS import AIS_Shape
from OCC.Core.BRepBuilderAPI import BRepBuilderAPI_MakeEdge, BRepBuilderAPI_MakeWire
from OCC.Core.BRepOffsetAPI import BRepOffsetAPI_ThruSections
from OCC.Core.gp import gp_Pnt
from OCC.Display.SimpleGui import init_display

# 做第一条封闭曲线（四边形）
E11=BRepBuilderAPI_MakeEdge(gp_Pnt(40,0,0),gp_Pnt(82.5,25,0)).Edge()
E12=BRepBuilderAPI_MakeEdge(gp_Pnt(82.5,25,0),gp_Pnt(42.5,93,0)).Edge()
E13=BRepBuilderAPI_MakeEdge(gp_Pnt(42.5,93,0),gp_Pnt(0,68,0)).Edge()
E14=BRepBuilderAPI_MakeEdge(gp_Pnt(0,68,0),gp_Pnt(40,0,0)).Edge()

W1=BRepBuilderAPI_MakeWire(E11,E12,E13,E14)

# 做第2条封闭曲线（三角形）
E21=BRepBuilderAPI_MakeEdge(gp_Pnt(40,0,10),gp_Pnt(82.5,25,10)).Edge()
E22=BRepBuilderAPI_MakeEdge(gp_Pnt(82.5,25,10),gp_Pnt(42.5,93,10)).Edge()
E23=BRepBuilderAPI_MakeEdge(gp_Pnt(42.5,93,10),gp_Pnt(40,0,10)).Edge()

W2=BRepBuilderAPI_MakeWire(E21,E22,E23)

generator=BRepOffsetAPI_ThruSections(True)

generator.AddWire(W1.Wire())
generator.AddWire(W2.Wire())

ais=AIS_Shape(generator.Shape())

generator.Build()



display, start_display, add_menu, add_function_to_menu = init_display()

display.DisplayShape(W1.Shape(),update=True)
display.DisplayShape(W2.Shape(),update=True)
# display.DisplayShape(generator.Shape(),update=True)
display.DisplayShape(ais.Shape(),update=True)
start_display()

4. 管道（实体）

from OCC.Core.BRepBuilderAPI import BRepBuilderAPI_MakeEdge, BRepBuilderAPI_MakeWire, BRepBuilderAPI_MakeFace
from OCC.Core.BRepOffsetAPI import BRepOffsetAPI_MakePipe
from OCC.Core.gp import gp_Circ, gp_Ax2, gp_Pnt, gp_Dir


E21=BRepBuilderAPI_MakeEdge(gp_Pnt(40,0,10),gp_Pnt(82.5,25,10)).Edge()
E22=BRepBuilderAPI_MakeEdge(gp_Pnt(82.5,25,10),gp_Pnt(42.5,93,10)).Edge()

W2=BRepBuilderAPI_MakeWire(E21,E22)

c=gp_Circ(gp_Ax2(gp_Pnt(0, 0, 0), gp_Dir(0, 1, 0)), 10)

Ec = BRepBuilderAPI_MakeEdge(c).Edge()
Wc = BRepBuilderAPI_MakeWire(Ec).Wire()
F = BRepBuilderAPI_MakeFace(Wc, True)
S = BRepOffsetAPI_MakePipe(W2.Wire(), F.Shape())# 第一个参数 轨迹线，第二个参数是轮廓线

if __name__ == "__main__":
    from OCC.Display.SimpleGui import init_display
    display, start_display, add_menu, add_function_to_menu = init_display()
    display.DisplayShape(S.Shape(), update=True)
    start_display()
