三维场景下使用交集、并集、差集方法CSG建模
1. CSG介绍
上一篇文章学习了模型的基本变换(旋转、缩放、平移)，这篇简单说说CSG建模，即构造实体形状，它是一种通过交集、并集、差集的运算用简单的几何形状创建复杂几何形状的方法，下面的图片可以清楚的描述这种方式建模的思路和过程
2. demo效果
sdf-csg
这个demo按照上面的图片中的思路，使用基础形状圆柱、立方体、球体通过交集、并集、差集将它们组合而成
3. 实现过程
3.1 交集、并集、差集函数
之前在二维空间中实现过交集、并集、差集函数，转换到三维空间思路是一样的，不过这一次处理的时候是附带了材质，所以使用x分量即距离进行比较，返回的是输入的其中一个vec2变量，具体如下
//交集
vec2 opI( vec2 d1, vec2 d2 )
{
return (d1.x>d2.x) ? d1 : d2;
}
//并集
vec2 opU( vec2 d1, vec2 d2 )
{
return (d1.x<d2.x) ? d1 : d2;
}
//差集
vec2 opS( vec2 d1, vec2 d2 )
{
return opI(d1,-d2);
}
3.2 旋转矩阵
旋转矩阵与上一篇文章中的一模一样，直接搬过来，如下
//绕z轴旋转矩阵
mat4 rotZ(float a) {
return mat4(cos(a),-sin(a),0.0,0.0,
sin(a),cos(a),0.0,0.0,
0.0,0.0,1.0,0.0,
0.0,0.0,0.0,1.0
);
}
//绕x轴旋转矩阵
mat4 rotX(float a) {
return mat4(1.0,0.0,0.0,0.0,
0.0,cos(a),-sin(a),0.0,
0.0,sin(a),cos(a),0.0,
0.0,0.0,0.0,1.0
);
}
//绕y轴旋转矩阵
mat4 rotY(float a) {
return mat4(cos(a),0.0,sin(a),0.0,
0.0,1.0,0.0,0.0,
-sin(a),0.0,cos(a),0.0,
0.0,0.0,0.0,1.0
);
}
3.3 基础形状
我们这用到的基础形状是圆柱、立方体、球体，它们的sdf函数如下
//球体
float sdSphere( vec3 p, float s )
{
return length(p)-s;
}
//立方体
float sdBox( vec3 p, vec3 b,float rad )
{
vec3 d = abs(p) - b;
return min(max(d.x,max(d.y,d.z)),0.0) + length(max(d,0.0)) - rad;
}
//圆柱
float sdCylinder( vec3 p, float h, float r )
{
vec2 d = abs(vec2(length(p.xz),p.y)) - vec2(r,h);
return min(max(d.x,d.y),0.0) + length(max(d,0.0));
}
3.4 组合过程
3.4.1 互相垂直圆柱实现
相交圆柱的实现就是绘制三根相互垂直的圆柱，然后用并集函数将它们合并，绘制过程是首先绘制出一根圆柱，然后将坐标系绕Z轴旋转90度绘制第二个圆柱，接着再将坐标系绕X轴旋转90度绘制第三根圆柱，最后合并它们，实现过程如下
//绘制三根垂直相交的圆柱
vec3 pos = p-vec3(0,2,5);//确定模型的中心
vec4 cylindersPos = vec4(pos,1.0);//转为其次坐标
cylindersPos*=rotY(u_time);//旋转
vec2 cylinder1 = vec2(sdCylinder(cylindersPos.xyz,2.0,0.6),1.0);
float angle = radians(90.0);//角度转为弧度
cylindersPos*=rotZ(angle);
vec2 cylinder2 = vec2(sdCylinder(cylindersPos.xyz,2.0,0.6),1.0);
cylindersPos*=rotX(angle);
vec2 cylinder3 = vec2(sdCylinder(cylindersPos.xyz,2.0,0.6),1.0);
// 三根圆柱取交集
vec2 cylinderRes = opU(cylinder1,cylinder2);
cylinderRes = opU(cylinderRes,cylinder3);

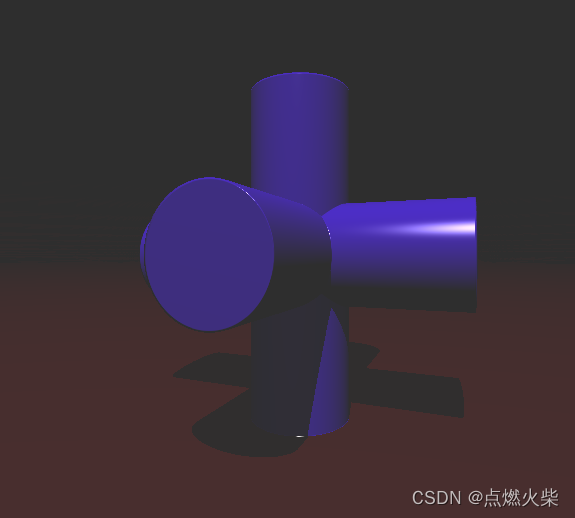

绘制结果
3.4.2 相交的球体与立方体
这一步比较简单，就是绘制球体与立方体然后求交集
pos = p-vec3(0,2,5);//屏幕坐标重置
vec4 boxPos = vec4(pos,1.0);//转为其次坐标
boxPos*=rotY(u_time);//旋转
vec2 box = vec2(sdBox(boxPos.xyz,vec3(1.0),0.06),2.0);//方块,材质ID为2.0
vec2 sphere = vec2(sdSphere(boxPos.xyz,1.4),3.0);//方块,材质ID为2.0
vec2 boxSphere = opI(box,sphere);//方块和球取交集

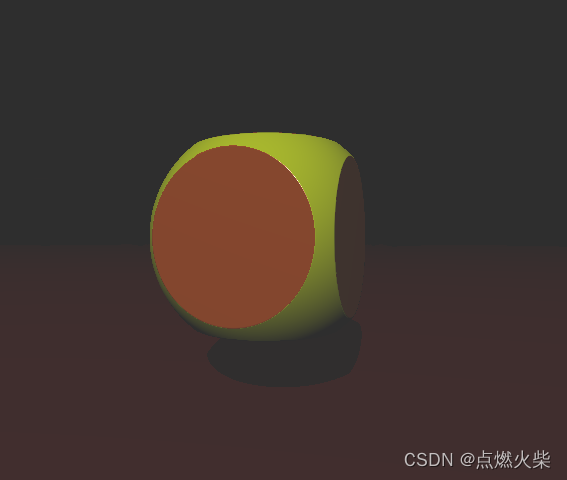

绘制结果
3.4.3 二者取差集
这一步只需要将上面两步取差集，返回即可
vec2 res = opS(boxSphere,cylinderRes);//方块和球交集结果与三个垂直圆柱取差集
res = opU(plane,res); //差集结果与地板取交集
return res;

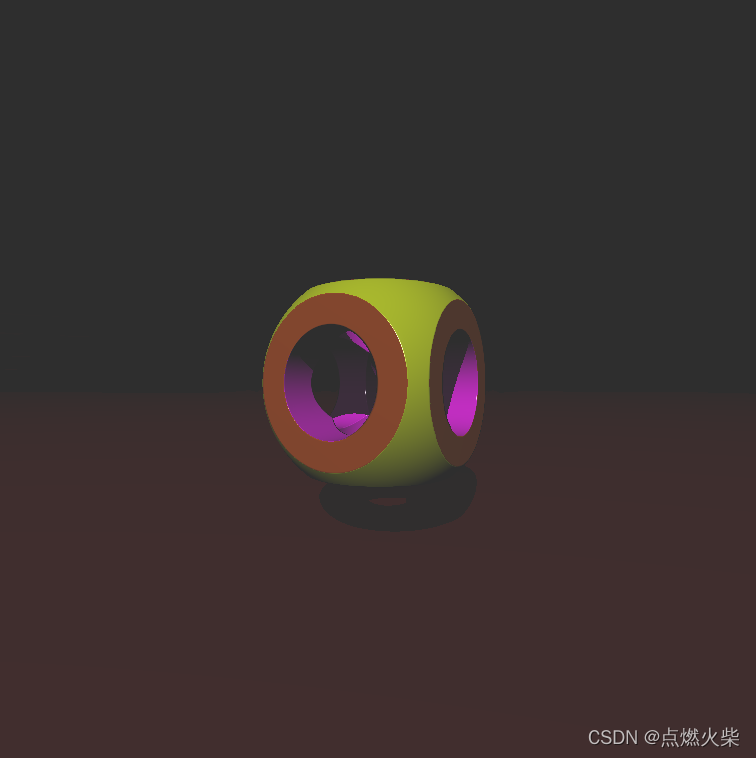

绘制结果
你会发现被掏空的地方是粉色，这个色来自哪里呢，来自main函数中的默认材质色
vec3 materialColor = vec3(1.0, 0.0, 1.0);//默认材质色，使用差集计算出来的内壁会使用该色填充
4. demo代码
又到了最后时刻，上全部代码！
<body>
<div id="container"></div>
<script src="http://www.yanhuangxueyuan.com/versions/threejsR92/build/three.js"></script>
<script>
var container;
var camera, scene, renderer;
var uniforms;
var vertexShader = `
void main() {
gl_Position = vec4( position, 1.0 );
}
`
var fragmentShader = `
#ifdef GL_ES
precision mediump float;
#endif
uniform float u_time;
uniform vec2 u_mouse;
uniform vec2 u_resolution;
const int MAX_STEPS = 100;//最大步进步数
const float MAX_DIST = 100.0;//最大步进距离
const float SURF_DIST = 0.01;//相交检测临近表面距离
//绕z轴旋转矩阵
mat4 rotZ(float a) {
return mat4(cos(a),-sin(a),0.0,0.0,
sin(a),cos(a),0.0,0.0,
0.0,0.0,1.0,0.0,
0.0,0.0,0.0,1.0
);
}
//绕x轴旋转矩阵
mat4 rotX(float a) {
return mat4(1.0,0.0,0.0,0.0,
0.0,cos(a),-sin(a),0.0,
0.0,sin(a),cos(a),0.0,
0.0,0.0,0.0,1.0
);
}
//绕y轴旋转矩阵
mat4 rotY(float a) {
return mat4(cos(a),0.0,sin(a),0.0,
0.0,1.0,0.0,0.0,
-sin(a),0.0,cos(a),0.0,
0.0,0.0,0.0,1.0
);
}
//交集
vec2 opI( vec2 d1, vec2 d2 )
{
return (d1.x>d2.x) ? d1 : d2;
}
//并集
vec2 opU( vec2 d1, vec2 d2 )
{
return (d1.x<d2.x) ? d1 : d2;
}
//差集
vec2 opS( vec2 d1, vec2 d2 )
{
return opI(d1,-d2);
}
//球体
float sdSphere( vec3 p, float s )
{
return length(p)-s;
}
//立方体
float sdBox( vec3 p, vec3 b,float rad )
{
vec3 d = abs(p) - b;
return min(max(d.x,max(d.y,d.z)),0.0) + length(max(d,0.0)) - rad;
}
//圆柱
float sdCylinder( vec3 p, float h, float r )
{
vec2 d = abs(vec2(length(p.xz),p.y)) - vec2(r,h);
return min(max(d.x,d.y),0.0) + length(max(d,0.0));
}
vec2 getDistandMaterial(vec3 p){
vec2 plane = vec2(p.y,0.0);//地面
//绘制三根垂直相交的圆柱
vec3 pos = p-vec3(0,2,5);//确定模型的中心
vec4 cylindersPos = vec4(pos,1.0);//转为其次坐标
cylindersPos*=rotY(u_time);//旋转
vec2 cylinder1 = vec2(sdCylinder(cylindersPos.xyz,2.0,0.6),1.0);
float angle = radians(90.0);//角度转为弧度
cylindersPos*=rotZ(angle);
vec2 cylinder2 = vec2(sdCylinder(cylindersPos.xyz,2.0,0.6),1.0);
cylindersPos*=rotX(angle);
vec2 cylinder3 = vec2(sdCylinder(cylindersPos.xyz,2.0,0.6),1.0);
// 三根圆柱取交集
vec2 cylinderRes = opU(cylinder1,cylinder2);
cylinderRes = opU(cylinderRes,cylinder3);
pos = p-vec3(0,2,5);//屏幕坐标重置
vec4 boxPos = vec4(pos,1.0);//转为其次坐标
boxPos*=rotY(u_time);//旋转
vec2 box = vec2(sdBox(boxPos.xyz,vec3(1.0),0.06),2.0);//方块,材质ID为2.0
vec2 sphere = vec2(sdSphere(boxPos.xyz,1.4),3.0);//方块,材质ID为2.0
vec2 boxSphere = opI(box,sphere);//方块和球取交集
vec2 res = opS(boxSphere,cylinderRes);//方块和球交集结果与三个垂直圆柱取差集
res = opU(plane,res); //差集结果与地板取交集
return res;
}
vec2 rayMarch(vec3 rayStart, vec3 rayDirection) {
float depth=0.;
float material=0.;
for(int i=0; i<MAX_STEPS; i++) {
vec3 p = rayStart + rayDirection*depth;//上一次步进结束后的坐标也就是这一次步进出发点
vec2 dm = getDistandMaterial(p);
float dist = dm.x;//获取当前步进出发点与物体相交时距离
material = dm.y;
depth += dist; //步进长度累加
if(depth>MAX_DIST || dist<SURF_DIST) break;//步进距离大于最大步进距离或与物体表面距离小于最小表面距离(光线进入物体)停止前进
}
return vec2(depth,material);
}
vec3 getNormal(vec3 p){
return normalize(vec3(
getDistandMaterial(vec3(p.x + SURF_DIST, p.y, p.z)).x - getDistandMaterial(vec3(p.x - SURF_DIST, p.y, p.z)).x,
getDistandMaterial(vec3(p.x, p.y + SURF_DIST, p.z)).x - getDistandMaterial(vec3(p.x, p.y - SURF_DIST, p.z)).x,
getDistandMaterial(vec3(p.x, p.y, p.z + SURF_DIST)).x - getDistandMaterial(vec3(p.x, p.y, p.z - SURF_DIST)).x
));
}
//Blinn-Phong模型光照计算
vec3 calcBlinnPhongLight( vec3 materialColor, vec3 p, vec3 ro) {
vec3 lightPos = vec3(5.0 * sin(u_time), 20.0, 10.0*cos(u_time)-18.);//光源坐标
//计算环境光
float k_a = 0.3;//环境光反射系数
vec3 ambientLight = 0.6 * vec3(1.0, 1.0, 1.0);
vec3 ambient = k_a*ambientLight;
vec3 N = getNormal(p); //法线
vec3 L = normalize(lightPos - p); //光照方向
vec3 V = normalize(ro - p); //视线
vec3 H = normalize(V+L); //半程向量
float r = length(lightPos - p);
//计算漫反射光
float k_d = 0.6;//漫反射系数
float dotLN = clamp(dot(L, N),0.0,1.0);//点乘，并将结果限定在0~1
vec3 diffuse = k_d * (materialColor/r*r) * dotLN;
//计算高光反射光
float k_s = 0.8;//镜面反射系数
float shininess = 160.0;
vec3 specularColor = vec3(1.0, 1.0, 1.0);
vec3 specular = k_s * (specularColor/r*r)* pow(clamp(dot(N, H), 0.0, 1.0), shininess);//计算高光
//计算阴影
vec2 res = rayMarch(p + N*SURF_DIST*2.0,L);
if(res.x<length(lightPos-p)-0.001){
diffuse*=0.1;
}
//颜色 = 环境光 + 漫反射光 + 镜面反射光
return ambient +diffuse + specular;
}
void main( void ) {
//窗口坐标调整为[-1,1],坐标原点在屏幕中心
vec2 st = (gl_FragCoord.xy * 2. - u_resolution) / u_resolution.y;
vec3 ro = vec3(0.0,2.0,0.0);//视点
vec3 rd = normalize(vec3(st.x,st.y,1.0));//视线方向
vec2 res = rayMarch(ro,rd);//反向光线追踪求交点距离与材质ID
float d = res.x;//物体与视点的距离
float m = res.y;//材质ID
vec3 p = ro + rd * d;
vec3 materialColor = vec3(1.0, 0.0, 1.0);//默认材质色，使用差集计算出来的内壁会使用该色填充
//为不同物体设置不同的材质颜色
if(m==0.0){
materialColor = vec3(.2, 0.0, 0.0);
}
if(m==1.0){
materialColor = vec3(.2, 0.0, 1.0);
}
if(m==2.0){
materialColor = vec3(.7, 0.2, 0.0);
}
if(m==3.0){
materialColor = vec3(.8, .9, 0.0);
}
vec3 color = vec3(1.0,1.0,1.0);
//使用Blinn-Phong模型计算光照
color *= calcBlinnPhongLight( materialColor, p, ro);
gl_FragColor = vec4(color, 1.0);
}
`
init();
animate();
function init() {
container = document.getElementById('container');
camera = new THREE.Camera();
camera.position.z = 1;
scene = new THREE.Scene();
var geometry = new THREE.PlaneBufferGeometry(2, 2);
uniforms = {
u_time: {
type: "f",
value: 1.0
},
u_resolution: {
type: "v2",
value: new THREE.Vector2()
},
u_mouse: {
type: "v2",
value: new THREE.Vector2()
}
};
var material = new THREE.ShaderMaterial({
uniforms: uniforms,
vertexShader: vertexShader,
fragmentShader: fragmentShader
});
var mesh = new THREE.Mesh(geometry, material);
scene.add(mesh);
renderer = new THREE.WebGLRenderer();
//renderer.setPixelRatio(window.devicePixelRatio);
container.appendChild(renderer.domElement);
onWindowResize();
window.addEventListener('resize', onWindowResize, false);
document.onmousemove = function (e) {
uniforms.u_mouse.value.x = e.pageX
uniforms.u_mouse.value.y = e.pageY
}
}
function onWindowResize(event) {
renderer.setSize(800, 800);
uniforms.u_resolution.value.x = renderer.domElement.width;
uniforms.u_resolution.value.y = renderer.domElement.height;
}
function animate() {
requestAnimationFrame(animate);
render();
}
function render() {
uniforms.u_time.value += 0.02;
renderer.render(scene, camera);
}
</script>
</body>
