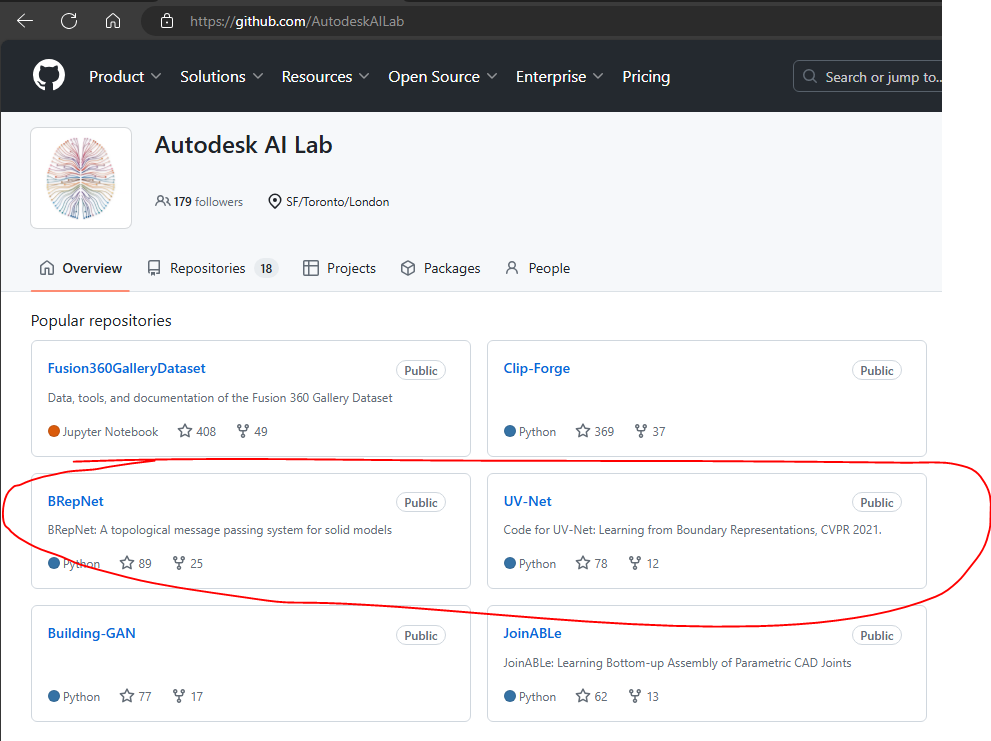

Autodesk AI Lab开源了基于OpenCASCADE内核的相关3D特殊识别的AI库:
![](https://www.caxkernel.com/wp-content/uploads/2024/07/frc-71dc9853aa0afe41497175612d99e0ec.png)
![](https://www.caxkernel.com/wp-content/uploads/2024/07/frc-b439c686481bd2bfdef0573f375e6706.png)
![](https://www.caxkernel.com/wp-content/uploads/2024/07/frc-2a9c8725bc4bd9e89fdf30267b98d8f4.png)
https://www.research.autodesk.com/publications/brep-net/

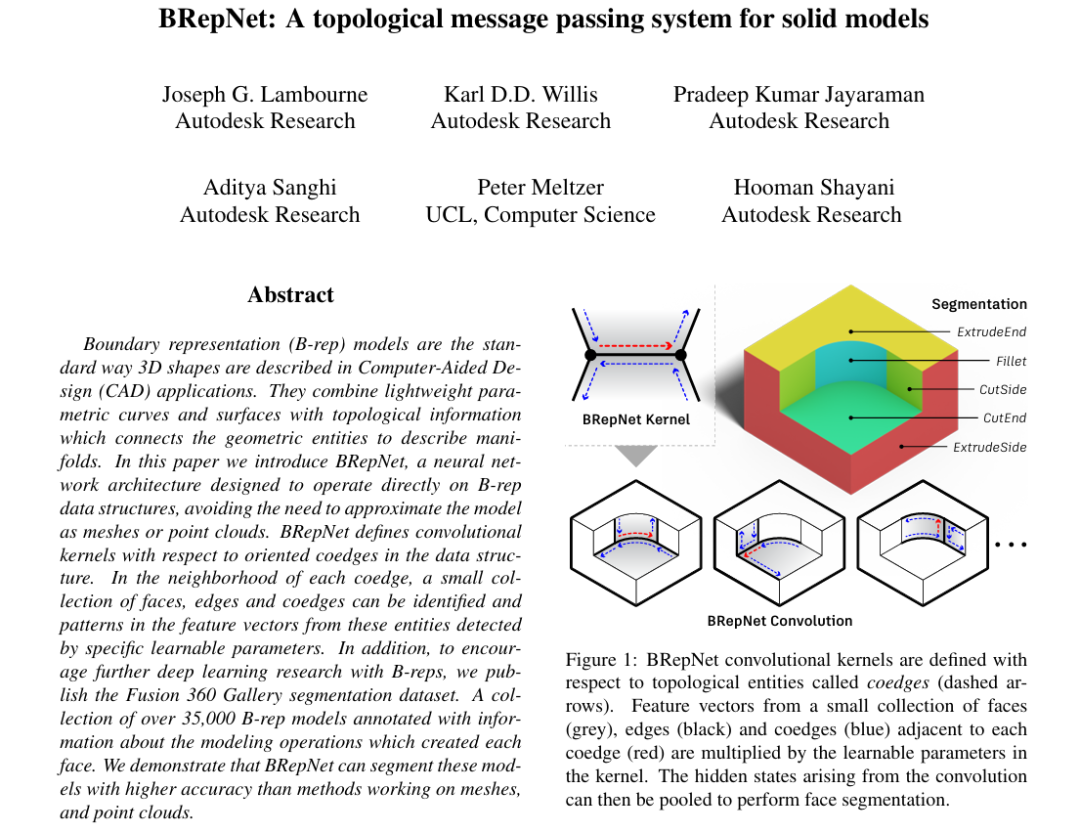

BRepNet: Revolutionizing CAD with Neural Networks
If you’ve ever worked with CAD (computer-aided design) software, you know how important it is to create accurate and detailed models. However, traditional modeling methods involve approximating the model as meshes or point clouds, which can lead to loss of information and inaccuracies. Fortunately, BRepNet, a neural network designed for CAD applications, is changing the game by operating directly on B-rep data structures.
与传统建模方法不同的是,BRepNet可以直接使用BRep来建模,而不需要使用模型的网格mesh或点云Point Clouds数据,这些数据都会有精度损失。直接使用神经网络建立BRep模型会更得到更高的精度。
BRep stands for Boundary Representation, and it is a method for representing 3D objects in CAD applications. In BRep models, objects are represented as a collection of faces, edges, and vertices. The faces are connected by edges, and the edges are connected to the vertices. Together, these entities form a topology, or a geometric structure that defines how the pieces of the object relate to each other.
BRep data structures allow for accurate representation of intricate shapes and designs, but they are also more complex than traditional methods. This is where BRepNet comes in.
BRepNet is a neural network that operates directly on BRep data structures. It defines convolutional kernels with respect to oriented coedges in the data structure. In other words, BRepNet can identify patterns in the feature vectors from faces, edges, and coedges, which are defined as pairs of half-edges that surround a face.
For example, if you’re designing a car, BRepNet can analyze the shape of the car’s doors and windows and detect any patterns in the way they are connected to the body of the car. This can help ensure that the car’s design is structurally sound and aesthetically pleasing.
BRepNet 是一种直接在 BRep 数据结构上运行的神经网络。它定义了与数据结构中定向协边相关的卷积核。换言之,BRepNet 可以从面、边和边识别特征向量中的模式,这些边和边被定义为围绕面的成对半边。
例如,如果您正在设计一辆汽车,BRepNet 可以分析汽车门窗的形状,并检测它们与车身连接方式的任何模式。这有助于确保汽车的设计结构合理且美观。
There are several advantages to using BRepNet in CAD applications:
Accuracy: Because BRepNet operates directly on BRep data structures, it can preserve the accuracy of the model. This means that designers can create more complex and intricate designs with confidence, knowing that the model will be represented accurately.
Efficiency: BRepNet can analyze BRep data structures more quickly and efficiently than traditional methods. This means that designers can spend more time exploring and refining their designs, rather than waiting for the computer to process the data.
Flexibility: BRepNet allows designers to work with a wider range of shapes and designs. Because BRep models are more flexible than traditional models, designers can create more unique and creative designs.
在 CAD 应用中使用 BRepNet 有几个优点:
准确性:由于BRepNet直接在BRep数据结构上运行,因此可以保持模型的准确性。这意味着设计人员可以自信地创建更复杂、更复杂的设计,因为他们知道模型将被准确表示。
效率:BRepNet可以比传统方法更快、更高效地分析BRep数据结构。这意味着设计人员可以花更多的时间探索和完善他们的设计,而不是等待计算机处理数据。
灵活性:BRepNet允许设计师处理更广泛的形状和设计。由于 BRep 模型比传统模型更灵活,设计师可以创建更独特和富有创意的设计。
BRepNet has a wide range of applications in various industries, including architecture, engineering, and product design. For example, BRepNet can be used to design complex building facades, analyze the structural integrity of bridges and tunnels, and create intricate product designs.
BRepNet在建筑、工程、产品设计等各行各业都有广泛的应用。例如,BRepNet可用于设计复杂的建筑立面,分析桥梁和隧道的结构完整性,并创建复杂的产品设计。
BRepNet can also be used in virtual reality applications, where accuracy and efficiency are crucial. For example, if you’re designing a virtual reality experience, you need to ensure that the environment is rendered accurately and quickly, so that users can interact with it in real-time. BRepNet can help ensure that the virtual reality environment is accurate and efficient.
BRepNet还可用于虚拟现实应用,在这些应用中,准确性和效率至关重要。例如,如果您正在设计虚拟现实体验,则需要确保准确、快速地渲染环境,以便用户可以实时与之交互。BRepNet可以帮助确保虚拟现实环境的准确性和效率。
BRepNet is a powerful tool for designers and engineers who want to create accurate, efficient, and flexible models. By operating directly on BRep data structures, BRepNet can enhance the accuracy and complexity of CAD models, while also making the design process faster and more efficient. As more industries adopt BRepNet, we can expect to see more complex and innovative designs that push the boundaries of what’s possible.
BRepNet 是一款强大的工具,适用于想要创建准确、高效和灵活模型的设计师和工程师。通过直接在 BRep 数据结构上运行,BRepNet 可以提高 CAD 模型的准确性和复杂性,同时使设计过程更快、更高效。随着越来越多的行业采用BRepNet,我们可以期待看到更复杂和创新的设计,这些设计突破了可能的界限。
AI是最近很火的话题,离我们生活最近的是这段时间武汉的:“萝卜快跑”出租车。Autodesk AILab基于OpenCASCADE开源了BRepNet,感兴趣的同学可以尝试一下。Autodesk有ACIS内核,在开源内核上尝试有些奇怪。
