OpenCASCADE Customize Highlighting

eryar@163.com

The traditional way of highlighting selected entity owners adopted by Open CASCADE Technology assumes that each entity owner highlights itself on its own. This approach has two drawbacks:

l  each entity owner has to maintain its own Prs3d_Presentation object, that results in a considerable memory overhead;

l  drawing selected owners one by one is not efficient from the visualization point of view.

OpenCASCADE内置的高亮算法是每个模型都有自己的高亮实体，高亮的一般是模型的TopoDS_Edge，对于B样条曲面还会显示出一条UIso和VIso线。这种高亮显示策略不一定符合所有人的需求，而且会占用额外大量的内存。

Therefore, to overcome these limitations, OCCT has an alternative way to implement the highlighting of a selected presentation. Using this approach, the interactive object itself will be responsible for the highlighting, not the entity owner.

因此，为了克服上面的缺点，OCCT提供一个自定义高亮的方式，由交互对象自己来实现高亮显示，满足更多个性化的需求。

On the basis of SelectMgr_EntityOwner::IsAutoHilight() return value, AIS_InteractiveContext object either uses the traditional way of highlighting (in case if IsAutoHilight() returns TRUE) or groups such owners according to their selectable objects and finally calls SelectMgr_SelectableObject::HilightSelected() or SelectMgr_SelectableObject::ClearSelected(), passing a group of owners as an argument.

Hence, an application can derive its own interactive object and redefine virtual methods HilightSelected(), ClearSelected() and HilightOwnerWithColor() from SelectMgr_SelectableObject. SelectMgr_SelectableObject::GetHilightPresentation and SelectMgr_SelectableObject::GetSelectPresentation methods can be used to optimize filling of selection and highlight presentations according to the user\’s needs. The AIS_InteractiveContext::HighlightSelected() method can be used for efficient redrawing of the selection presentation for a given interactive object from an application code.

当SelectMgr_SelectableObject的所有子类的IsAutoHilight()返回true时，则是由OCCT自动实现高亮选择效果。当IsAutoHilight()返回false时，则交互对象的高亮显示交给用户自己来实现。具体实现步骤为从类SelectMgr_SelectableObject派生出一个子类，重写三个虚函数：

l  HilightSelected()：交互对象选中时的高亮显示效果；

l  ClearSelected()：清除对象选中时的高亮效果；

l  HilightOwnerWithColor()：鼠标移动到交互对象上时的高亮效果；

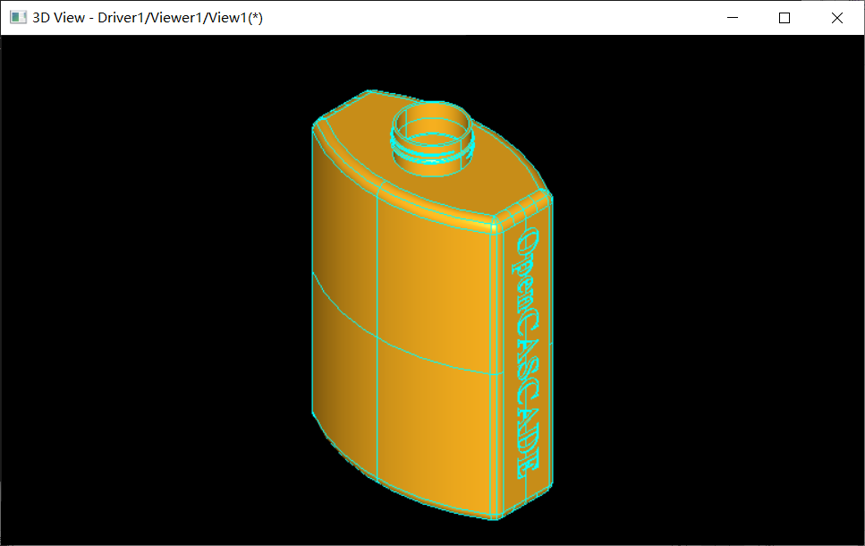

如上图所示为OCCT自动高亮显示效果，模型的每个Edge都高亮显示；

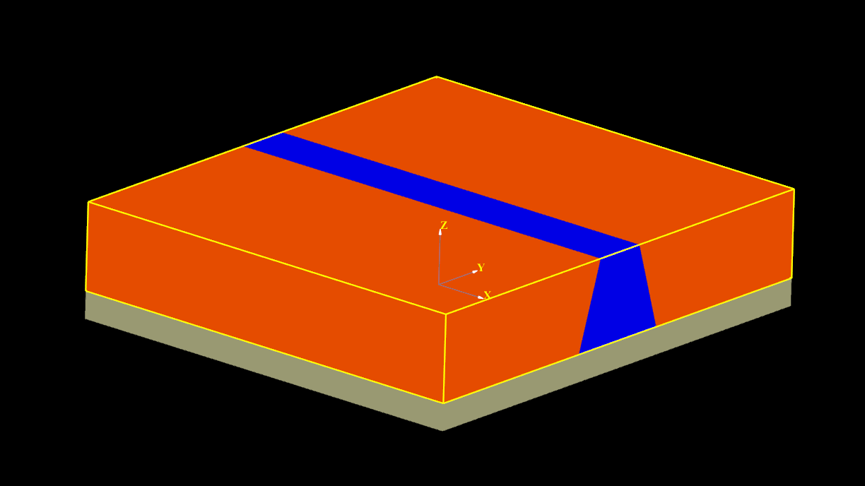

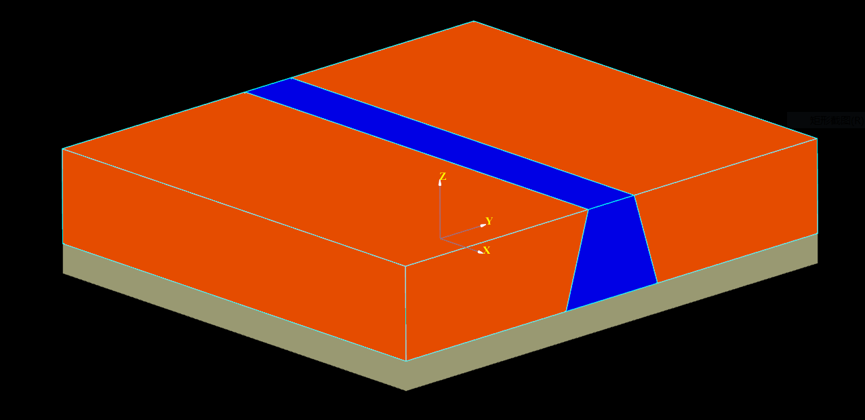

上图所示为自己实现模型的高亮效果，只高亮显示模型的外边框。这样高亮显示的数据少，占用内存就少，效率更高。
