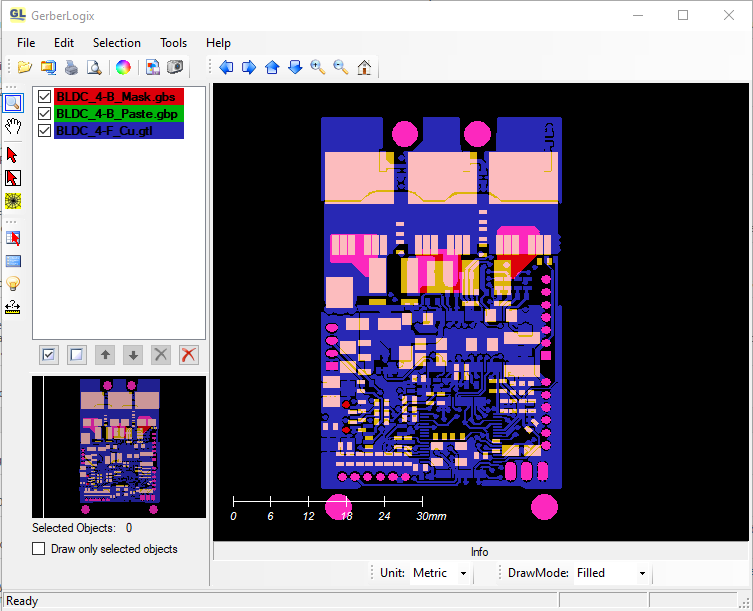

GerberLogix

制造商：Schindler & Schill GmbH
GerberLogix provides you with exactly these advantages combined with a wide range of functions.

Reading documentation before you can finally use a software is bothering you? Whenever possible, you work around time-consuming installations? And, you avoid programs that clutter your Windows registry?

After all, you think a software should support you in your work and thereby save you valuable time!

GerberLogix provides you with exactly these advantages combined with a wide range of functions. So why not download the latest version of our free, multifunctional Gerber Viewer GerberLogix? The Freeware licence is only valid for uncommercial usage. A licence for commercial usage is available for 199 Euro (plus VAT) per workplace.

You are familiar with our Online Gerber Viewer or already using it? Well, then, you already know about the extensive import functionalities (e.g. Gerber or Excellon).

We are proud to offer you another Gerber Viewer with many additional functions: Our GerberLogix software solution! GerberLogix supplies you with the tools you really need!

Below, you will find a list of all functionalities at a glance:

File import with automatic format recognition (extended Gerber / Excellon1, Excellon2 )
Direct reading of packed ZIP files
High-resolution image export in various formats (tiff, jpg, png, bmp)
Integrated screenshot functionality
Three different drawing modes (Filled, Outline, Both)
All objects can be dimensioned directly
Images can be imported and placed behind the CAD data
Multiple selection options and transparent drawing
Selection of a network
layers / objects can be moved, rotated and mirrored
Layers with different offset can be automatically aligned
Freely selectable colours
Five different measuring methods
point to point
object to object
object center to object center
restring for drillings
auto
Attribute histogram for all objects
Powerful print functionality
Strokes (mouse gestures)

System requirementsMicrosoft Windows 10/Windows 7/Vista/XP/2003
Microsoft .NET Framework 4.0

Here you can watch some example videos:Switch all layers on/off
Quick object info
Label all objects with their dimension (info layer)
Select objects by a property
