Render OpenCascade Geometry Curves in OpenSceneGraph

在OpenSceneGraph中绘制OpenCascade的曲线

Render OpenCascade Geometry Curves in OpenSceneGraph

eryar@163.com

摘要Abstract:本文简要说明OpenCascade中几何曲线的数据,并将这些几何曲线在OpenSceneGraph中绘制出来。

关键字KeyWords:OpenCascade、Geometry Curve、OpenSceneGraph、B-Spline、NURBS

一、引言 Introduction

结合《BRep Format Description White Paper》对OpenCascade中的几何数据结构有详细的介绍。OpenCascade中BRep格式中的曲线总共分为九种,不过有二维三维之分:

1.直线 Line

2.圆 Circle

3.椭圆 Ellipse

4.抛物线 Parabola

5.双曲线 Hyperbola

6.Bezier曲线 Bezier Curve

7.B-Spline曲线 B-Spline Curve

8.裁剪曲线 Trimmed Curve

9.偏移曲线 Offset Curve

曲线的几何数据都有一个抽象基类Geom_Curve,类图如下所示:

wps_clip_image-32738

Figure 1.1 Geometry curve class diagram

抽象基类Geom_Curve有几个纯虚函数FirstParameter()、LastParameter()、Value(),根据这几个虚函数,就可以计算曲线上对应参数U的值。类图如下图所示:

wps_clip_image-32037

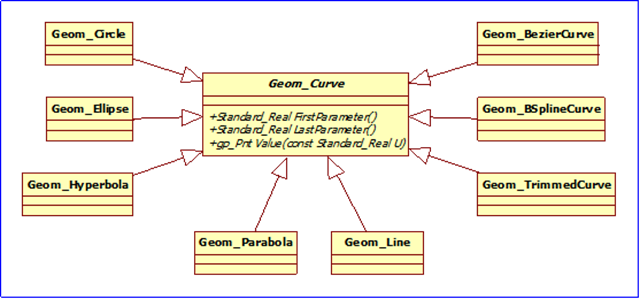

Figure 1.2 Geom_Curve Inherited class diagram

每种曲线都对那些纯虚函数进行实现,使计算曲线上点的方式统一。

二、程序示例 Code Example

根据抽象基类Geom_Curve的几个纯虚函数:

1.FirstParameter();

2.LastParameter();

3.Value(u);

利用多态可将曲线上点都以统一的方式计算出来,并使用GL_LINE_STRIP绘制出来。示例程序如下所示:

/*
*    Copyright (c) 2013 eryar All Rights Reserved.
*
*        File    : Main.cpp
*        Author  : eryar@163.com
*        Date    : 2013-08-09 18:09
*        Version : 1.0v
*
*    Description : Draw OpenCascade Geometry Curves in OpenSceneGraph.
*
*/

// OpenSceneGraph library.
#include <osgDB/ReadFile>
#include <osgViewer/Viewer>
#include <osgViewer/ViewerEventHandlers>
#include <osgGA/StateSetManipulator>

#pragma comment(lib, \"osgd.lib\")
#pragma comment(lib, \"osgDbd.lib\")
#pragma comment(lib, \"osgGAd.lib\")
#pragma comment(lib, \"osgViewerd.lib\")

// OpenCascade library.
#include <TColgp_Array1OfPnt.hxx>
#include <TColStd_Array1OfReal.hxx>
#include <TColStd_Array1OfInteger.hxx>

#include <Geom_Circle.hxx>
#include <Geom_Ellipse.hxx>
#include <Geom_Hyperbola.hxx>
#include <Geom_Parabola.hxx>
#include <Geom_BezierCurve.hxx>
#include <Geom_BSplineCurve.hxx>

#pragma comment(lib, \"TKernel.lib\")
#pragma comment(lib, \"TKMath.lib\")
#pragma comment(lib, \"TKG3d.lib\")

// Curve Segment Delta.
const double CURVE_SEGMENT_DELTA = 0.01;

/*
* @brief Build geometry curve of OpenCascade.
*/
osg::Node* buildCurve(const Geom_Curve& curve)
{
    osg::ref_ptr<osg::Geode> geode = new osg::Geode();
    osg::ref_ptr<osg::Geometry> linesGeom = new osg::Geometry();
    osg::ref_ptr<osg::Vec3Array> pointsVec = new osg::Vec3Array();

    gp_Pnt point;
    double dFirst = curve.FirstParameter();
    double dLast = curve.LastParameter();

    Precision::IsNegativeInfinite(dFirst) ? dFirst = -1.0 : dFirst;
    Precision::IsInfinite(dLast) ? dLast = 1.0 : dLast;

    for (double u = dFirst; u <= dLast; u += CURVE_SEGMENT_DELTA)
    {
        point = curve.Value(u);

        pointsVec->push_back(osg::Vec3(point.X(), point.Y(), point.Z()));
    }

    // Set the colors.
    osg::ref_ptr<osg::Vec4Array> colors = new osg::Vec4Array;
    colors->push_back(osg::Vec4(1.0f, 1.0f, 0.0f, 0.0f));
    linesGeom->setColorArray(colors.get());
    linesGeom->setColorBinding(osg::Geometry::BIND_OVERALL);

    // Set the normal in the same way of color.
    osg::ref_ptr<osg::Vec3Array> normals = new osg::Vec3Array;
    normals->push_back(osg::Vec3(0.0f, -1.0f, 0.0f));
    linesGeom->setNormalArray(normals.get());
    linesGeom->setNormalBinding(osg::Geometry::BIND_OVERALL);

    // Set vertex array.
    linesGeom->setVertexArray(pointsVec);
    linesGeom->addPrimitiveSet(new osg::DrawArrays(osg::PrimitiveSet::LINE_STRIP, 0, pointsVec->size()));

    geode->addDrawable(linesGeom.get());

    return geode.release();
}

/**
* @breif Build geometry curve of OpenCascade.
*/
osg::Node* buildScene()
{
    osg::ref_ptr<osg::Group> root = new osg::Group();

    // 1. Build circle curve.
    Geom_Circle circle(gp::YOZ(), 1.0);

    root->addChild(buildCurve(circle));

    // 2. Build ellipse curve.
    Geom_Ellipse ellipse(gp::ZOX(), 1.0, 0.3);

    root->addChild(buildCurve(ellipse));

    // 3. Build Hyperbola curve.
    Geom_Hyperbola hyperbola(gp::XOY(), 1.0, 0.6);

    root->addChild(buildCurve(hyperbola));

    // 4. Build parabola curve.
    Geom_Parabola parabola(gp::ZOX(), 1.0);

    root->addChild(buildCurve(parabola));

    // 5. Build Bezier curve.
    TColgp_Array1OfPnt poles(1, 4);
    poles.SetValue(1, gp_Pnt(-1, -1, 0));
    poles.SetValue(2, gp_Pnt(1, 2, 0));
    poles.SetValue(3, gp_Pnt(3, 0, 0));
    poles.SetValue(4, gp_Pnt(4, 1, 0));
    Geom_BezierCurve bezierCurve(poles);

    root->addChild(buildCurve(bezierCurve));

    // 6. Build BSpline curve.
    TColgp_Array1OfPnt ctrlPnts(1, 3);
    TColStd_Array1OfReal knots(1, 5);
    TColStd_Array1OfInteger mults(1, 5);

    ctrlPnts.SetValue(1, gp_Pnt(0, 1, 0));
    ctrlPnts.SetValue(2, gp_Pnt(1, -2, 0));
    ctrlPnts.SetValue(3, gp_Pnt(2, 3, 0));

    knots.SetValue(1, 0.0);
    knots.SetValue(2, 0.25);
    knots.SetValue(3, 0.5);
    knots.SetValue(4, 0.75);
    knots.SetValue(5, 1.0);

    mults.Init(1);

    Geom_BSplineCurve bsplineCurve(ctrlPnts, knots, mults, 1);

    root->addChild(buildCurve(bsplineCurve));

    return root.release();
}

int main(int argc, char* argv[])
{
    osgViewer::Viewer myViewer;

    myViewer.setSceneData(buildScene());

    myViewer.addEventHandler(new osgGA::StateSetManipulator(myViewer.getCamera()->getOrCreateStateSet()));
    myViewer.addEventHandler(new osgViewer::StatsHandler);
    myViewer.addEventHandler(new osgViewer::WindowSizeHandler);

    return myViewer.run();
}

因抛物线和双曲线的FirstParameter()和LastParameter()为负无穷和正无穷,所以对其进行处理,只输出了部分曲线。

程序效果如下图所示:

wps_clip_image-7357

Figure 2.1 OpenCascade Geometry Curves in OpenSceneGraph

三、结论 Conclusion

OpenCascade的几何数据使用还是很方便的,只要将相应的曲线构造出来之后,计算曲线上的点使用函数Value()即可,还可计算相应参数处的微分值等。

通过理解《BRep Format Description White Paper》,可将BRep文件中数据导入OpenCascade中与上面实现的程序进行对比,结果正确。如下图所示:

wps_clip_image-13312

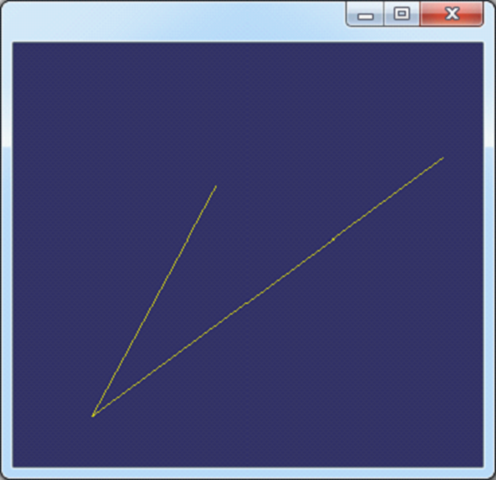

Figure 3.1 B-Spline in OpenSceneGraph

wps_clip_image-6019

Figure 3.2 B-Spline in OpenCascade Draw
