NMFLibrary

MATLAB library for non-negative matrix factorization (NMF)

Authors: Hiroyuki Kasai

Last page update: Oct. 14, 2020

Latest library version: 1.8.1 (see Release notes for more info)

Introduction

The NMFLibrary is a pure-Matlab library of a collection of algorithms of non-negative matrix factorization (NMF).

List of the algorithms available in NMFLibrary

• Base NMF

  • MU (multiplicative updates)

    • MU
      • D.D. Lee and H. S. Seung, "Algorithms for non-negative matrix factorization," NIPS 2000. (for Euclidean distance and Kullback-Leibler divergence (KL))
      • A.Cichocki, S.Amari, R.Zdunek, R.Kompass, G.Hori, and Z.He, "Extended SMART algorithms for non-negative matrix factorization," Artificial Intelligence and Soft Computing, 2006. (for alpha divergence and beta divergence)
    • Modified MU
      • C.-J. Lin, "On the convergence of multiplicative update algorithms for nonnegative matrix factorization," IEEE Trans. Neural Netw. vol.18, no.6, pp.1589-1596, 2007.
    • Acceralated MU
      • N. Gillis and F. Glineur, "Accelerated multiplicative updates and hierarchical ALS algorithms for nonnegative matrix factorization," Neural Computation, vol.24, no.4, pp. 1085-1105, 2012.

  • PGD (projected gradient descent)

    • PGD
    • Direct PGD
      • C.-J. Lin, "Projected gradient methods for nonnegative matrix factorization," Neural Computation, vol.19, no.10, pp.2756-2779, 2007.

  • ALS (alternative least squares)

    • ALS
    • Hierarchical ALS (HALS)
      • A. Cichocki and P. Anh-Huy, "Fast local algorithms for large scale nonnegative matrix and tensor factorizations," IEICE Trans. on Fundamentals of Electronics, Communications and Computer Sciences, vol.92, no.3, pp. 708-721, 2009.
    • Acceralated Hierarchical ALS
      • N. Gillis and F. Glineur, "Accelerated multiplicative updates and hierarchical ALS algorithms for nonnegative matrix factorization," Neural Computation, vol.24, no.4, pp. 1085-1105, 2012.

  • ANLS (alternative non-negative least squares)

    • ASGROUP (ANLS with Active Set Method and Column Grouping)
    • ASGIVENS (ANLS with Active Set Method and Givens Updating)
    • BPP (ANLS with Block Principal Pivoting Method)
      • J. Kim, Y. He, and H. Park, "Algorithms for nonnegative matrix and tensor factorizations: A unified view based on block coordinate descent framework," Journal of Global Optimization, 58(2), pp. 285-319, 2014.
      • J. Kim and H. Park, "Fast nonnegative matrix factorization: An active-set-like method and comparisons," SIAM Journal on Scientific Computing (SISC), 33(6), pp. 3261-3281, 2011.

• Variant

  • GNMF (Graph Regularized NMF)

    • D. Cai, X. He, X. Wu, and J. Han, "Non-negative Matrix Factorization on Manifold," Proc. 2008 Int. Conf. on Data Mining (ICDM), 2008.
    • D. Cai, X. He, J. Han and T. Huang, "Graph Regularized Non-negative Matrix Factorization for Data Representation," IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol.33, No.8, pp.1548-1560, 2011.

  • Semi-NMF

    • C.H.Q. Ding, T. Li, M. I. Jordan, "Convex and Semi-Nonnegative Matrix Factorizations," IEEE Transactions on Pattern Analysis and Machine Intelligence, vol.32, no.1, 2010.

  • NeNMF (NMF with Sinkhorn Distance)

    • N. Guan, D. Tao, Z. Luo, and B. Yuan, "NeNMF: An Optimal Gradient Method for Non-negative Matrix Factorization", IEEE Transactions on Signal Processing, Vol. 60, No. 6, pp. 2882-2898, Jun. 2012.

  • SDNMF (NMF with Sinkhorn Distance)

    • W. Qian, B. Hong, D. Cai, X. He, and X. Li, "Non-negative matrix factorization with sinkhorn distance", IJCAI, pp.1960-1966, 2016.

• Robust NMF

  • N. Guan, D. Tao, Z. Luo, and B. Yuan, "Online nonnegative matrix factorization with robust stochastic approximation," IEEE Trans. Newral Netw. Learn. Syst., 2012.

• Sparse

  • sparseMU (Sparse multiplicative upates (MU))

    • J. Eggert and E. Korner, "Sparse coding and NMF", IEEE International Joint Conference on Neural Networks, 2004.
    • M. Schmidt, J. Larsen, and F. Hsiao, "Wind noise reduction using non-negative sparse coding", IEEE Workshop on Machine Learning for Signal Processing (MLSP), 2007.

  • sparseNMF (Sparse NMF)

  • NMFsc (NMF with sparseness constraints)

    • Patrik O. Hoyer, "Non-negative matrix factorization with sparseness constraints," Journal of Machine Learning Research (JMLR), vol.5, pp.1457-1469, 2004.

  • nsNMF (Nonsmooth NMF)

    • A. Pascual-Montano, J. M. Carazo, K. Kochi, D. Lehmann, and R. D. Pascual-Marqui, "Nonsmooth Nonnegative Matrix Factorization (nsNMF)," IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI), vol.28, no.3, pp.403-415, 2006.

  • fnsNMF (Fast nonsmooth NMF)

    • Z. Yang, Y. Zhang, W. Yan, Y. Xiang, and S. Xie, "A fast non-smooth nonnegative matrix factorization for learning sparse representation," IEEE Access, vol.4, pp.5161-5168, 2016.

  • NMF-HALS-SO (Hierarchical ALS with soft orthogonal constraint)

    • M. Shiga, K. Tatsumi, S. Muto, K. Tsuda, Y. Yamamoto, T. Mori, and T. Tanji, "Sparse modeling of EELS and EDX spectral imaging data by nonnegative matrix factorization", Ultramicroscopy, Vol.170, p.43-59, 2016.

• Orthgotonal

  • DTPP (Orthgotonal multiplicative upates (MU))

    • C. Ding, T. Li, W. Peng, and H. Park, "Orthogonal nonnegative matrix t-factorizations for clustering", 12th ACM SIGKDD international conference on Knowledge discovery and data mining (KDD), 2006.

  • orthMU (Orthgotonal multiplicative upates (MU))

    • S. Choi, "Algorithms for orthogonal nonnegative matrix factorization", IEEE International Joint Conference on Neural Networks, 2008.

  • OrthNMF

    • F. Pompilia, N. Gillis, P.-A. Absil, and F. Glineur, "Two algorithms for orthogonal nonnegative matrix factorization with application to clustering," Neurocomputing, vol.141, no.2, pp.15-25, 2014.

• Symmetric

  • SymmANLS (Symmetric ANLS)

    • D. Kuang, C. Ding, H. Park, "Symmetric Nonnegative Matrix Factorization for Graph Clustering," The 12th SIAM International Conference on Data Mining (SDM'12), pp.106-117, 2012.

    • D. Kuang, S. Yun, H. Park, "SymNMF Nonnegative low-rank approximation of a similarity matrix for graph clustering," Journal of Global Optimization, vol.62, no.3, pp.545-574, 2015.

    • Z. Zhu, X. Li, K. Liu, Q. Li, "Dropping Symmetry for Fast Symmetric Nonnegative Matrix Factorization," NIPS, 2018.

  • SymmHALS (Symmetric HALS)

    • Z. Zhu, X. Li, K. Liu, Q. Li, "Dropping Symmetry for Fast Symmetric Nonnegative Matrix Factorization," NIPS, 2018.

  • SymmNewton (Symmetric Newton)

• Online/stochstic NMF

  • INMF (Incremental NMF) and ONMF (Online NMF)

    • S. S. Bucak and B. Gunsel, "Incremental Subspace Learning via Non-negative Matrix Factorization," Pattern Recognition, 2009.

  • SPG (Stochastic projected gradient descent)

  • RONMF (Robust online NMF)

    • R. Zhao and Y. F. Tan, "Online nonnegative matrix factorization with outliers," IEEE ICASSP2016, 2016.
    • N. Guan, D. Tao, Z. Luo, and B. Yuan, "Online nonnegative matrix factorization with robust stochastic approximation," IEEE Trans. Newral Netw. Learn. Syst., 2012.

  • SAGA-MU-NMF (SAGA multiplicative updates)

    • R. Serizel, S. Essid and G.Richard, "Mini-batch stochastic approaches for accelerated multiplicative updates in nonnegative matrix factorisation with beta-divergence,", IEEE 26th International Workshop on Machine Learning for Signal Processing (MLSP), 2016.

  • SMU (Stochastic multiplicative updates) and SVRMU (Stochastic variance reduced multiplicative updates)

    • H. Kasai, "Stochastic variance reduced multiplicative update for nonnegative matrix factorization," IEEE ICASSP2018, 2018.

• Probabilistic NMF

  • PNMF-GIBBS (Gibbs sampler for non-negative matrix factorisation, with ARD.)

    • M.N. Schmidt, O. Winther, L.K. Hansen, "Bayesian non-negative matrix factorization," International Conference on Independent Component Analysis and Signal Separation, Springer Lecture Notes in Computer Science, Vol. 5441, 2009.

    • T. Brouwer, P. Lio, "Bayesian Hybrid Matrix Factorisation for Data Integration," 20th International Conference on Artificial Intelligence and Statistics (AISTATS), 2017.

  • PNMF-VB (Variational Bayesian inference for non-negative matrix factorisation, with ARD)

    • T. Brouwer, J. Frellsen. P. Lio, "Comparative Study of Inference Methods for Bayesian Nonnegative Matrix Factorisation," ECML PKDD 2017, 2017.

Algorithm configurations

Folders and files

./                      - Top directory.
./README.md             - This readme file.
./run_me_first.m        - The scipt that you need to run first.
./demo.m                - Demonstration script to check and understand this package easily.
./demo_face.m           - Demonstration script to check and understand this package easily.
|plotter/               - Contains plotting tools to show convergence results and various plots.
|auxiliary/             - Some auxiliary tools for this project.
|solver/                - Contains various optimization algorithms.
    |--- base/          - Basic NMF solvers.
    |--- online/        - Online/stochstic NMF solvers.
    |--- sparse/        - Sparse NMF solvers.
    |--- robust/        - Robust NMF solvers.
    |--- orthogonal/    - Orthogonal NMF solvers.
    |--- symm/          - Symmetric NMF solvers.
    |--- nenmf/         - Nesterov's accelerated NMF solver.
    |--- probabilistic/ - Probabilistic NMF solvers.
    |--- 3rd_party/     - Solvers provided by 3rd_party.

First to do

Run run_me_first for path configurations.

%% First run the setup script
run_me_first;

Simplest usage example: 4 steps!

Just execute demo for the simplest demonstration of this package. .

%% Execute the demonstration script
demo;

The "demo.m" file contains below.

%% generate synthetic data non-negative matrix V size of (mxn)
m = 500;
n = 100;
V = rand(m,n);

%% Initialize rank to be factorized
rank = 5;

%% perform factroization
% MU
options.alg = 'mu';
[w_nmf_mu, infos_nmf_mu] = nmf_mu(V, rank, options);
% Hierarchical ALS
options.alg = 'hals';
[w_nmf_hals, infos_nmf_hals] = nmf_als(V, rank, options);

%% plot
display_graph('epoch','cost', {'MU', 'HALS'}, {w_nmf_mu, w_nmf_hals}, {infos_nmf_mu, infos_nmf_hals});

Let's take a closer look at the code above bit by bit. The procedure has only 4 steps!

Step 1: Generate data

First, we generate synthetic data of V of size (mxn).

m = 500;
n = 100;
V = rand(m,n);

Step 2: Define rank

We set the rank value.

rank = 5;

Step 3: Perform solver

Now, you can perform optimization solvers, e.g., MU and Hierarchical ALS (HALS), calling solver functions, i.e., nmf_mu() function and nmf_als() function after setting some optimization options.

% MU
options.alg = 'mu';
[w_nmf_mu, infos_nmf_mu] = nmf_mu(V, rank, options);
% Hierarchical ALS
options.alg = 'hals';
[w_nmf_hals, infos_nmf_hals] = nmf_als(V, rank, options);

They return the final solutions of w and the statistics information that include the histories of epoch numbers, cost values, norms of gradient, the number of gradient evaluations and so on.

Step 4: Show result

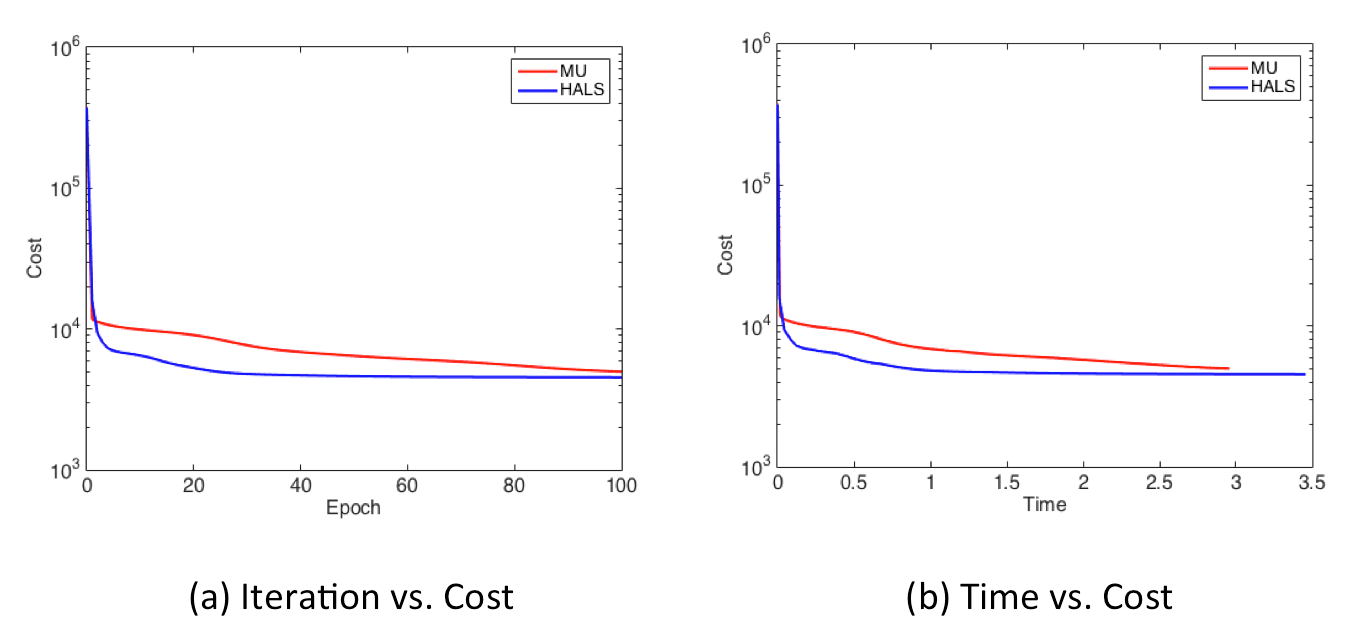

Finally, display_graph() provides output results of decreasing behavior of the cost values in terms of the number of iterrations (epochs) and time [sec].

display_graph('epoch','cost', {'MU', 'HALS'}, {w_nmf_mu, w_nmf_hals}, {infos_nmf_mu, infos_nmf_hals});
display_graph('time','cost', {'MU', 'HALS'}, {w_nmf_mu, w_nmf_hals}, {infos_nmf_mu, infos_nmf_hals});

That's it!

More plots

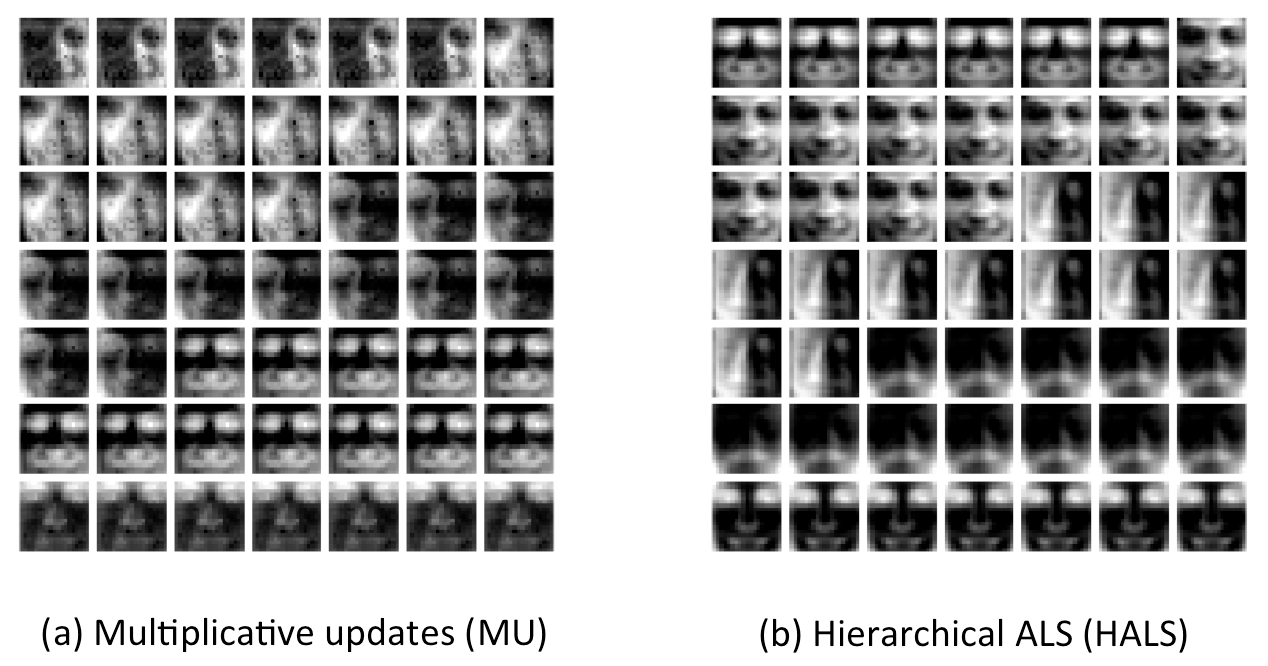

"demo_face.m" illustrates the learned basis (dictrionary) in case of CBCL face datasets.

The dataset is first loaded into V instead of generating synthetic data in Step 1.

V = importdata('./data/CBCL_face.mat');

Then, we can display basis elements (W: dictionary) obtained with different algorithms additionally in Step 4.

plot_dictionnary(w_nmf_mu.W, [], [7 7]);
plot_dictionnary(w_nmf_hals.W, [], [7 7]);

License

• The NMFLibrary is free, non-commercial and open source.
• The code provided iin NMFLibrary should only be used for academic/research purposes.
• Third party files are included.
  • For ANLS algorithms: nnlsm_activeset.m, nnls1_asgivens.m, nnlsm_blockpivot.m, and normalEqComb.m written by Jingu Kim.
  • For PGD algorithm: nlssubprob.m.
  • For GNMF algorithm: GNMF.m, GNMF_Multi.m, constructW.m and litekmeans.m writtnen by Deng Cai.
  • For SDNMF algorithm: SDNMF.m, and SDNMF_Multi.m writtnen by Wei Qian.
  • For symmetric algorithms writtnen by D.Kang et al. and Z. Zhu et al.
  • For acceleration sub-routines in nmf_mu.m and nmf_als.m for MU and HALS from Nicolas Gillis.
  • For dictionaly visualization: plot_dictionnary.m, rescale.m, and getoptions.m.

Acknowledge

• Thank you for big contributions to this library to
  • Haonan Huang

Problems or questions

If you have any problems or questions, please contact the author: Hiroyuki Kasai (email: hiroyuki dot kasai at waseda dot jp)

Release notes

• Version 1.8.1 (Oct. 14, 2020)
  • Bug fixed in nmf_sc.m and semi_nmf, and added the LPinitSemiNMF algorithm into generate_init_factors.m (Thanks to Haonan Huang).
• Version 1.7.0 (June 27, 2019)
  • Symmetic solvers are added.
  • Clustering quality measurements are integrated into store_nmf_infos.m.
• Version 1.7.0 (May 21, 2019)
  • PNMF-VB and NeNMF are added.
  • Fixed some bugs.
• Version 1.6.0 (May 16, 2019)
  • DTPP is added.
• Version 1.5.1 (Apr. 22, 2019)
  • Some solvers are modified to fix bugs.
• Version 1.5.0 (Jul. 30, 2018)
  • fnsNMF and NMF-HALS-SO are added.
• Version 1.4.0 (Jul. 24, 2018)
  • sparseMU and orthMU are added.
  • MU with Kullback-Leibler divergence (KL), Amari alpha divergence, and beta divergenceare added.
• Version 1.3.0 (Jul. 23, 2018)
  • NMFsc, scNMF and csNMF are added.
• Version 1.2.0 (Jul. 21, 2018)
  • GNMF, Semi-NMF and SDNMF are added.
• Version 1.1.0 (Apr. 17, 2018)
  • Online/stochastic solvers are added.
• Version 1.0.0 (Apr. 04, 2017)
  • Initial version.
