OpenCASCADE Linear Extrusion Surface

Abstract. OpenCASCADE linear extrusion surface is a generalized cylinder. Such a surface is obtained by sweeping a curve (called the “extruded curve” or “basis”) in a given direction (referred to as the direction of extrusion and defined by a unit vector). The u parameter is along the extruded curve. The v parameter is along the direction of extrusion. The form of a surface of linear extrusion is generally a ruled surface. It can be a cylindrical surface, or a planar surface.

Key Words. OpenCASCADE, Extrusion Surface, Sweeping

1. Introduction

一般柱面（The General Cylinder）可以由一段或整个圆弧沿一个方向偏移一定的距离得到。如下图所示：

Figure 1.1 Extrusion Shapes

当将顶点拉伸时，会生成一条边；当将边拉伸时，会生成面；当将Wire拉伸时，会生成Shell，当将面拉伸时，会生成体。当将曲线沿一个方向拉伸时，会形成一个曲面，如果此方向为直线，则会生成一般柱面。如果此方向是曲线时，会生成如下图所示曲面：

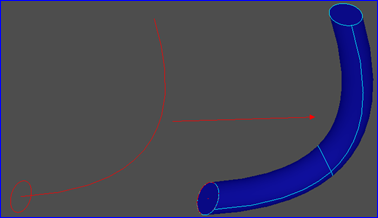

Figure 1.2 Swept surface/ loft surface

本文主要介绍将曲线沿直线方向拉伸的算法，即一般柱面生成算法。并将生成的曲面在OpenSceneGraph中进行显示。

2.Cylinder Surface Definition

设 W是一个单位向量，C(u)是定义在节点矢量U上，权值为wi的p次NURBS曲线。我们要得到一般柱面S(u,v)的表达式，S(u,v)是通过将 C(u)沿方向W平行扫描（sweep）距离d得到的。记扫描方向的参数为v, 0<v<1，显然，S(u,v)必须满足以下两个条件：

v 对于固定的u0, S(u0, v)为由C(u0)到C(u0)+dW的直线段；

v 对于固定的v0：

所要求的柱面的表达式为：

S(u,v)定义在节点矢量U和V上，这里V＝{0，0，1，1}，U为C(u)的节点矢量。控制顶点由Pi,0=Pi和Pi,1=Pi+dW给出，权值wi,0=wi,1=wi。如下图所示为一般柱面：

Figure 2.1 A general cylinder obtained by translating C(u) a distance d along W.

其中OpenCASCADE中一般柱面的表达式如下所示：

其取值范围的代码如下所示：

//=======================================================================
//function : Bounds
//purpose  :
//=======================================================================
void Geom_SurfaceOfLinearExtrusion::Bounds ( Standard_Real& U1,
                         Standard_Real& U2,
                         Standard_Real& V1,
                         Standard_Real& V2 ) const {

  V1 = -Precision::Infinite();  V2 = Precision::Infinite();
  U1 = basisCurve->FirstParameter();  U2 = basisCurve->LastParameter();
}

由上代码可知，参数在v方向上是趋于无穷的；在u方向上参数的范围为曲线的范围。计算柱面上点的方法代码如下所示：

//=======================================================================
//function : D0
//purpose  :
//=======================================================================
void Geom_SurfaceOfLinearExtrusion::D0 (const Standard_Real U,
                                        const Standard_Real V,
                                        Pnt& P)  const {

  XYZ Pxyz = direction.XYZ();
  Pxyz.Multiply (V);
  Pxyz.Add (basisCurve->Value (U).XYZ());
  P.SetXYZ(Pxyz);
}

即将柱面上点先按V方向来计算，再按U方向来计算，最后将两个方向的值相加即得到柱面上的点。

由上述代码可知，OpenCASCADE中一般柱面没有使用NURBS曲面来表示。根据这个方法，可以将任意曲线沿给定的方向来得到一个柱面，这个曲线可以是直线、圆弧、圆、椭圆等。关于柱面上更多算法，如求微分等，可以参考源程序。

3.Display the Surface

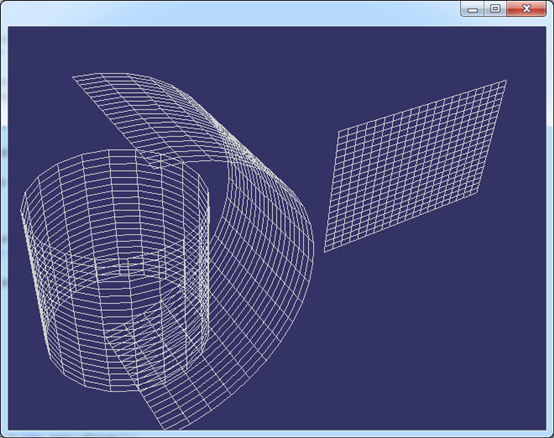

还是在OpenSceneGraph中来对一般柱面进行可视化，来验证结果。因为OpenSceneGraph的简单易用，显示曲面的程序代码如下所示：

/*
*    Copyright (c) 2013 to current year. All Rights Reserved.
*
*           File : Main.cpp
*         Author : eryar@163.com
*           Date : 2014-11-23 10:18
*        Version : OpenCASCADE6.8.0
*
*    Description : Test the Linear Extrusion Surface of OpenCASCADE.
*
*      Key Words : OpenCascade, Linear Extrusion Surface, General Cylinder
*
*/

// OpenCASCADE.
#define WNT
#include <Precision.hxx>

#include <gp_Circ.hxx>

#include <Geom_SurfaceOfLinearExtrusion.hxx>

#include <GC_MakeCircle.hxx>
#include <GC_MakeSegment.hxx>
#include <GC_MakeArcOfCircle.hxx>

#pragma comment(lib, \"TKernel.lib\")
#pragma comment(lib, \"TKMath.lib\")
#pragma comment(lib, \"TKG3d.lib\")
#pragma comment(lib, \"TKGeomBase.lib\")


// OpenSceneGraph.
#include <osgViewer/Viewer>
#include <osgViewer/ViewerEventHandlers>

#include <osgGA/StateSetManipulator>

#pragma comment(lib, \"osgd.lib\")
#pragma comment(lib, \"osgGAd.lib\")
#pragma comment(lib, \"osgViewerd.lib\")

const double TOLERANCE_EDGE = 1e-6;
const double APPROXIMATION_DELTA = 0.05;

/**
* @brief Render 3D geometry surface.
*/
osg::Node* BuildSurface(const Handle_Geom_Surface& theSurface)
{
    osg::ref_ptr<osg::Geode> aGeode = new osg::Geode();

    Standard_Real aU1 = 0.0;
    Standard_Real aV1 = 0.0;
    Standard_Real aU2 = 0.0;
    Standard_Real aV2 = 0.0;
    Standard_Real aDeltaU = 0.0;
    Standard_Real aDeltaV = 0.0;

    theSurface->Bounds(aU1, aU2, aV1, aV2);

    // trim the parametrical space to avoid infinite space.
    Precision::IsNegativeInfinite(aU1) ? aU1 = -1.0 : aU1;
    Precision::IsInfinite(aU2) ? aU2 = 1.0 : aU2;

    Precision::IsNegativeInfinite(aV1) ? aV1 = -1.0 : aV1;
    Precision::IsInfinite(aV2) ? aV2 = 1.0 : aV2;

    // Approximation in v direction.
    aDeltaU = (aU2 - aU1) * APPROXIMATION_DELTA;
    aDeltaV = (aV2 - aV1) * APPROXIMATION_DELTA;

    for (Standard_Real u = aU1; (u - aU2) <= TOLERANCE_EDGE; u += aDeltaU)
    {
        osg::ref_ptr<osg::Geometry> aLine = new osg::Geometry();
        osg::ref_ptr<osg::Vec3Array> aPoints = new osg::Vec3Array();

        for (Standard_Real v = aV1; (v - aV2) <= TOLERANCE_EDGE; v += aDeltaV)
        {
            gp_Pnt aPoint = theSurface->Value(u, v);

            aPoints->push_back(osg::Vec3(aPoint.X(), aPoint.Y(), aPoint.Z()));
        }

        // Set vertex array.
        aLine->setVertexArray(aPoints);
        aLine->addPrimitiveSet(new osg::DrawArrays(osg::PrimitiveSet::LINE_STRIP, 0, aPoints->size()));

        aGeode->addDrawable(aLine.get());
    }

    // Approximation in u direction.
    for (Standard_Real v = aV1; (v - aV2) <= TOLERANCE_EDGE; v += aDeltaV)
    {
        osg::ref_ptr<osg::Geometry> aLine = new osg::Geometry();
        osg::ref_ptr<osg::Vec3Array> aPoints = new osg::Vec3Array();

        for (Standard_Real u = aU1; (u - aU2) <= TOLERANCE_EDGE; u += aDeltaU)
        {
            gp_Pnt aPoint = theSurface->Value(u, v);

            aPoints->push_back(osg::Vec3(aPoint.X(), aPoint.Y(), aPoint.Z()));
        }

        // Set vertex array.
        aLine->setVertexArray(aPoints);
        aLine->addPrimitiveSet(new osg::DrawArrays(osg::PrimitiveSet::LINE_STRIP, 0, aPoints->size()));

        aGeode->addDrawable(aLine.get());
    }

    return aGeode.release();
}

/**
* @brief Build the test scene.
*/
osg::Node* BuildScene(void)
{
    osg::ref_ptr<osg::Group> aRoot = new osg::Group();

    // test the linear extrusion surface.
    // test linear extrusion surface of a line.
    Handle_Geom_Curve aSegment = GC_MakeSegment(gp_Pnt(3.0, 0.0, 0.0), gp_Pnt(6.0, 0.0, 0.0));
    Handle_Geom_Surface aPlane = new Geom_SurfaceOfLinearExtrusion(aSegment, gp::DZ());

    aRoot->addChild(BuildSurface(aPlane));

    // test linear extrusion surface of a arc.
    Handle_Geom_Curve aArc = GC_MakeArcOfCircle(gp_Circ(gp::ZOX(), 2.0), 0.0, M_PI, true);
    Handle_Geom_Surface aSurface = new Geom_SurfaceOfLinearExtrusion(aArc, gp::DY());

    aRoot->addChild(BuildSurface(aSurface));

    // test linear extrusion surface of a circle.
    Handle_Geom_Curve aCircle = GC_MakeCircle(gp::XOY(), 1.0);
    Handle_Geom_Surface aCylinder = new Geom_SurfaceOfLinearExtrusion(aCircle, gp::DZ());

    aRoot->addChild(BuildSurface(aCylinder));

    return aRoot.release();
}

int main(int argc, char* argv[])
{
    osgViewer::Viewer aViewer;

    aViewer.setSceneData(BuildScene());

    aViewer.addEventHandler(new osgGA::StateSetManipulator(
        aViewer.getCamera()->getOrCreateStateSet()));
    aViewer.addEventHandler(new osgViewer::StatsHandler);
    aViewer.addEventHandler(new osgViewer::WindowSizeHandler);

    return aViewer.run();

    return 0;
}
