Optionally defines a name for this boundary condition.

（可选）定义此边界条件的名称。

Optionally defines a name for this boundary condition.

• （可选）定义此边界条件的名称。

Translational stiffness value in x-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系x方向上的平移刚度值。

Translational stiffness value in y-direction of the coordinate system defined by the instance which uses this resource object.

• 由使用此资源对象的实例定义的坐标系y方向上的平移刚度值。

Translational stiffness value in z-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系z方向上的平移刚度值。

Rotational stiffness value about the x-axis of the coordinate system defined by the instance which uses this resource object.

• 关于使用此资源对象的实例定义的坐标系x轴的旋转刚度值。

Rotational stiffness value about the y-axis of the coordinate system defined by the instance which uses this resource object.

• 关于使用此资源对象的实例定义的坐标系y轴的旋转刚度值。

Rotational stiffness value about the z-axis of the coordinate system defined by the instance which uses this resource object.

• 关于使用此资源对象的实例定义的坐标系z轴的旋转刚度值。

Optionally defines a name for this boundary condition.

• （可选）定义此边界条件的名称。

Translational stiffness value in x-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系x方向上的平移刚度值。

Translational stiffness value in y-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系y方向上的平移刚度值。

Translational stiffness value in z-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系z方向上的平移刚度值。

Optionally defines a name for this boundary condition.

• （可选）定义此边界条件的名称。

Translational stiffness value in x-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系x方向上的平移刚度值。

Translational stiffness value in y-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系y方向上的平移刚度值。

Translational stiffness value in z-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系z方向上的平移刚度值。

Rotational stiffness value about the x-axis of the coordinate system defined by the instance which uses this resource object.

• 关于使用此资源对象的实例定义的坐标系x轴的旋转刚度值。

Rotational stiffness value about the y-axis of the coordinate system defined by the instance which uses this resource object.

• 关于使用此资源对象的实例定义的坐标系y轴的旋转刚度值。

Rotational stiffness value about the z-axis of the coordinate system defined by the instance which uses this resource object.

• 关于使用此资源对象的实例定义的坐标系z轴的旋转刚度值。

Optionally defines a name for this boundary condition.

• （可选）定义此边界条件的名称。

Translational stiffness value in x-direction of the coordinate system defined by the instance which uses this resource object.

• 使用此资源对象的实例定义的坐标系x方向上的平移刚度值。

Rotational stiffness value about the x-axis of the coordinate system defined by the instance which uses this resource object.

• 关于使用此资源对象的实例定义的坐标系x轴的旋转刚度值。

Defines the warping stiffness value.

• 定义扭曲刚度值。

Optionally defines a name for this load.

• （可选）定义此负载的名称。

List of load or result values.

• 负载或结果值的列表。

Locations of the load samples or result samples, given within the local coordinate system defined by the instance which uses this resource object. Each item in the list of locations pertains to the values list item at the same list index. This attribute is optional for configurations in which the locations are implicitly known from higher-level definitions.

• 加载样本或结果样本的位置，在使用此资源对象的实例定义的局部坐标系内给出。位置列表中的每个项都属于同一列表索引中的值列表项。对于从更高级别的定义中隐式知道位置的配置，此属性是可选的。

The distortion curvature (warping, i.e. a cross-sectional deplanation) given to the displacement load.

• 位移荷载的变形曲率（翘曲，即横截面去平面）。

The warping moment at the point load.

• 扭曲的时刻的负载。

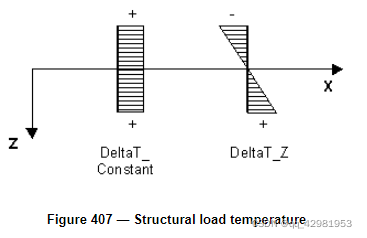

Temperature change which affects the complete section of the structural member, or the uniform portion of a non-uniform temperature change.

• 影响结构构件完整截面或非均匀温度变化的均匀部分的温度变化。

NOTE  A positive value describes an increase in temperature. I.e. a positive constant temperature change causes elongation of a member, or compression in the member if there are respective restraints.

• 注：正值表示温度升高。也就是说，正的恒定温度变化会导致构件伸长，或者如果存在相应的约束，则会导致构件受压

Non-uniform temperature change, specified as the difference of the temperature change at the outer fibre of the positive y direction minus the temperature change at the outer fibre of the negative y direction of the analysis member.

• 非均匀温度变化，规定为分析构件正y方向外纤维处的温度变化减去负y方向外纤维处的温度变化之差。

NOTE  A positive non-uniform temperature change in y induces a negative curvature of the member about z, or a positive bending moment about z if there are respective restraints. y and z are local member axes.

• 注：y中的正非均匀温度变化会导致构件在z附近产生负曲率，或在有相应约束的情况下，在z附近产生正弯矩。y和z是局部成员轴。

Non-uniform temperature change, specified as the difference of the temperature change at the outer fibre of the positive z direction minus the temperature change at the outer fibre of the negative z direction of the analysis member.

• 非均匀温度变化，规定为正z方向外纤维处的温度变化减去分析构件负z方向外纤维处的温度变化之差。

NOTE  A positive non-uniform temperature change in z induces a positive curvature of the member about y, or a negative bending moment about y if there are respective restraints. y and z are local member axes.

• 注：z中的正非均匀温度变化会导致构件在y附近的正曲率，或在有相应约束的情况下，在y附近的负弯矩。y和z是局部成员轴。

Reinforcement at the face of the member which is located at the side of the positive local z direction of the surface member. Specified as area per length, e.g. square metre per metre (hence length measure, e.g. metre). The reinforcement area may be specified for two or three directions of reinforcement bars.

• 位于表面构件正局部z方向一侧的构件表面钢筋。指定为每长度的面积，例如每米平方米（因此长度测量，例如米）。钢筋面积可指定为两个或三个方向的钢筋。

Reinforcement at the face of the member which is located at the side of the negative local z direction of the surface member. Specified as area per length, e.g. square metre per metre (hence length measure, e.g. metre). The reinforcement area may be specified for two or three directions of reinforcement bars.

• 位于表面构件负局部z方向一侧的构件表面钢筋。指定为每长度的面积，例如每米平方米（因此长度测量，例如米）。钢筋面积可指定为两个或三个方向的钢筋。

Shear reinforcement. Specified as area per area, e.g. square metre per square metre (hence ratio measure, i.e. unitless).

• 抗剪钢筋。指定为每面积的面积，例如每平方米平方米（因此，比率测量，即无单位）。
